Components of a typical switch power supply


A switch power supply, also known as a switching power supply or switch-mode power supply (SMPS), is an electronic device that converts electrical power from one form or source to another, typically from alternating current (AC) to direct current (DC) or vice versa. Switch power supplies are widely used in various electronic devices and systems because of their efficiency, compact size, and ability to handle a wide range of input voltages.

Here are the key features and components of a typical switch power supply:

1. Input Stage: In the case of an AC-to-DC switch power supply, the input stage rectifies and filters the incoming AC voltage from the mains power supply. In the case of a DC-to-DC switch power supply, this stage may not be present.

2. Converter Stage: The heart of a switch power supply is the converter stage, which uses semiconductor devices (usually MOSFETs or transistors) to rapidly switch the input voltage on and off at a high frequency, typically in the kHz range. This switching action reduces energy loss and allows for efficient voltage conversion.

3. Transformer or Inductor: A transformer or inductor is used to step up or step down the voltage as required by the output. It plays a crucial role in isolating the input and output circuits.

4. Switching Controller: The switching controller is responsible for regulating the output voltage and current. It uses feedback from the output to adjust the switching frequency and duty cycle to maintain the desired output voltage and stabilize the power supply.

5. Output Stage: The output stage rectifies and filters the switched voltage to provide a stable DC output. Additional components, such as capacitors and voltage regulators, are often used to further smooth and regulate the output voltage.

6. Protection Circuitry: Switch power supplies may include protection features such as overcurrent protection, overvoltage protection, and thermal shutdown to prevent damage to the power supply and connected devices.

Key advantages of switch power supplies include:

- Efficiency: Switch power supplies are highly efficient, resulting in less energy wastage as heat compared to linear power supplies.

- Compact Size: They are generally smaller and lighter than linear power supplies with similar output capacities.

- Wide Input Voltage Range: Switch power supplies can often operate within a wide range of input voltages, making them versatile for use in different regions with varying mains voltages.

- Stable Output: Switching controllers provide precise regulation of the output voltage and current, ensuring stable power delivery to connected devices.

- Lower Heat Generation: Because of their efficiency, switch power supplies generate less heat during operation, which is essential in applications with limited cooling capabilities.

Applications of switch power supplies are numerous and include:

- Consumer Electronics: Used in devices like smartphones, laptops, TVs, and gaming consoles.

- Industrial Equipment: Used in automation systems, robotics, CNC machines, and more.

- Telecommunications: Employed in telecom infrastructure, routers, and networking equipment.

- Power Distribution: Used in power supplies for LED lighting, automotive electronics, and battery chargers.

- Renewable Energy: Used in solar inverters and wind turbine controllers.

- Medical Devices: Found in medical imaging equipment, patient monitors, and diagnostic devices.

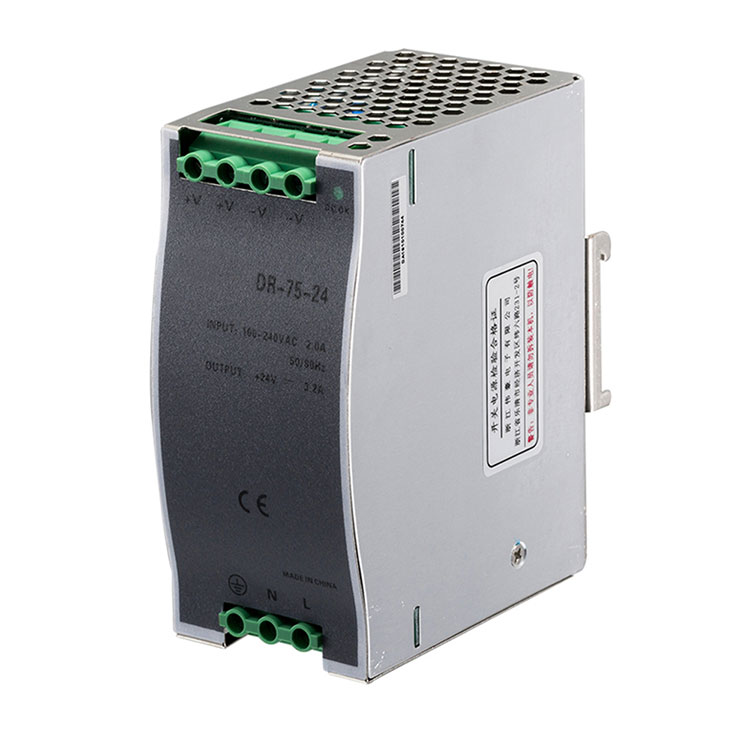

Switch power supplies are available in various configurations, including open-frame, enclosed, and modular designs, making them adaptable to a wide range of applications. When selecting a switch power supply, it's crucial to consider factors such as the required output voltage and current, input voltage range, efficiency, and environmental conditions to ensure compatibility with the intended use.
