Features and components of a single girder bridge crane

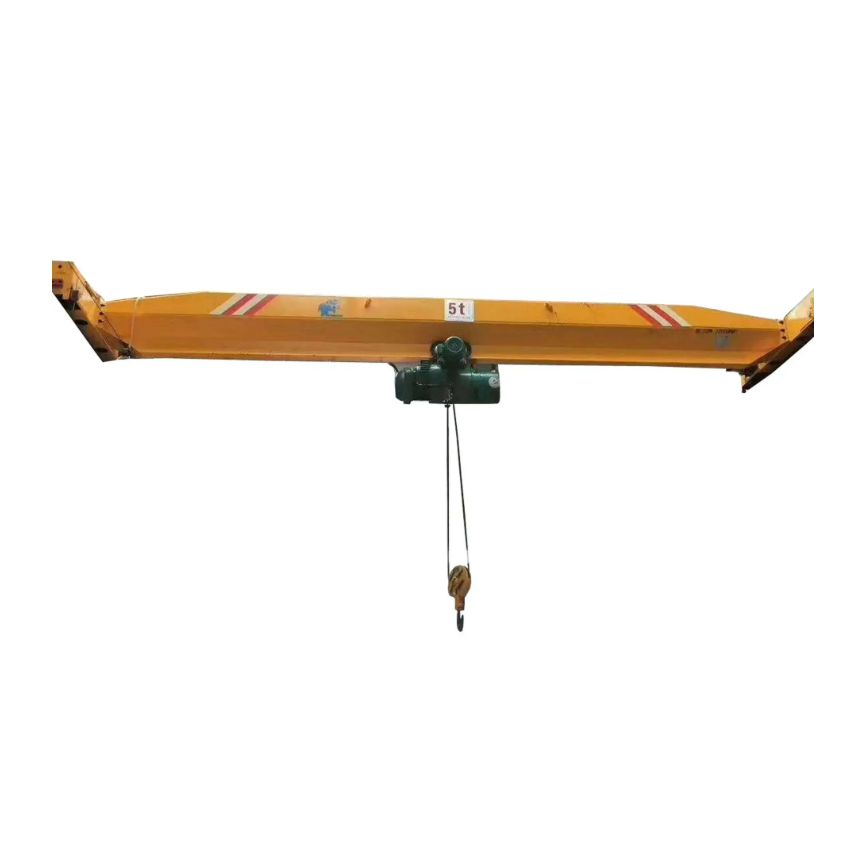

A single girder bridge crane is a type of overhead crane commonly used in industrial settings for material handling and lifting tasks. It consists of a single horizontal beam (girder) that spans the width of the working area and is supported on each end by a runway structure. This type of crane is designed to move loads horizontally along the runway and vertically by raising or lowering the hoist and trolley system that travels on the girder.

Key features and components of a single girder bridge crane include:

1. Girder: The girder is the main horizontal beam that supports the hoist and trolley system. It spans the width of the area where the crane operates and is typically made of steel or other strong materials.

2. Runway: The runway is the structural support system that holds the girder in place. It consists of columns or supports on each end of the girder and can be either free-standing or attached to the building structure.

3. Hoist and Trolley System: The hoist is the lifting mechanism that is used to raise and lower the load. It is attached to a trolley that runs along the length of the girder. The trolley can move the hoist horizontally along the girder to position the load as needed.

4. Controls: Single girder bridge cranes are operated using control systems that allow operators to move the crane, hoist, and trolley with precision. These controls can range from basic push-button pendant controls to more advanced radio remote controls or even computerized systems.

Benefits of using a single girder bridge crane:

- Cost-Effective: Single girder cranes are generally more cost-effective than double girder cranes due to their simpler design and lower material requirements.

- Lighter Load on Building Structure: A single girder crane places less load on the building structure compared to a double girder crane, which might require additional support.

- Flexible Configuration: Single girder bridge cranes are available in various configurations, making them suitable for a range of lifting applications in industries such as manufacturing, warehousing, and logistics.

- Efficient Use of Space: They are particularly useful in facilities with limited headroom, as their design allows for more vertical space utilization.

It's important to choose the right type of crane for your specific application and lifting requirements. Single girder bridge cranes are suitable for light to moderate lifting tasks. For heavier loads and higher duty cycles, double girder bridge cranes might be more appropriate. Always consult with experts in crane design and installation to ensure safety, efficiency, and compliance with regulations.
