Key features and characteristics of NH fuse type disconnectors

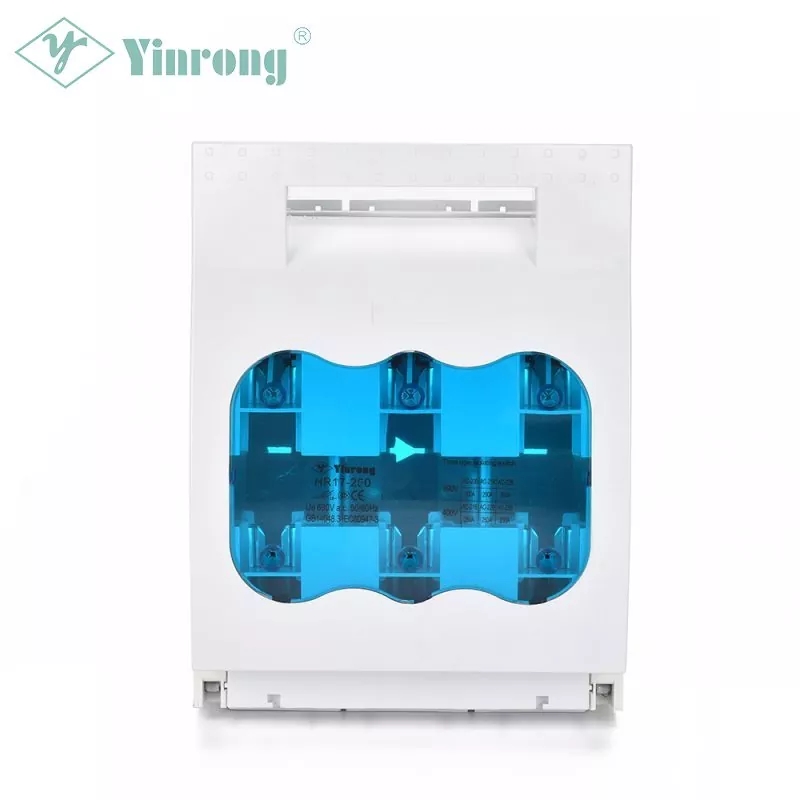

An NH fuse type disconnector, also known as a NH knife switch or NH fuse switch disconnector, is a type of electrical switching device commonly used in low-voltage electrical distribution systems, especially in industrial and commercial applications. It is designed to provide a means for isolating and disconnecting electrical circuits safely for maintenance or other purposes.

Here are some key features and characteristics of NH fuse type disconnectors:

1. Design: NH fuse type disconnectors typically consist of a base and a removable fuse-link assembly. The base is permanently installed in the electrical distribution system, while the fuse-link assembly can be easily replaced as needed.

2. Fuse-Link: The fuse-link assembly contains a specially designed fuse element that can interrupt electrical current in the event of an overload or short circuit. The fuse-link is selected based on the rated current and protection requirements of the circuit.

3. Switching Mechanism: NH fuse type disconnectors have a knife-like switching mechanism that allows the circuit to be either connected or disconnected by moving the fuse-link assembly into or out of contact with the base.

4. Isolation: When the fuse-link assembly is removed from the base, the circuit is isolated, and no electrical current can flow through it. This isolation is crucial for the safety of maintenance personnel working on electrical equipment.

5. Protection: NH fuse type disconnectors provide both overload and short-circuit protection for the connected circuit. If a fault occurs, the fuse-link assembly will blow or melt, interrupting the current and protecting the circuit and connected equipment.

6. Versatility: These disconnectors are available in various sizes and current ratings to accommodate a wide range of applications, from small loads to heavy industrial machinery.

7. Mounting: NH fuse type disconnectors can be mounted on DIN rails or directly on electrical panels, depending on the application and installation requirements.

8. Safety: Safety features such as interlocking mechanisms and clear visual indicators are often incorporated to prevent accidental operation and to show the status of the disconnecting switch.

NH fuse type disconnectors are commonly used in electrical distribution boards, switchgear, motor control centers, and other electrical enclosures. They play a critical role in ensuring the safety of personnel working on electrical systems by allowing for the safe isolation of circuits during maintenance or troubleshooting activities. Additionally, the use of fuse-links provides protection against overcurrent conditions, helping to safeguard electrical equipment from damage.

It's important to follow proper procedures and safety protocols when using NH fuse type disconnectors, as well as to select the appropriate fuse-link based on the specific application and load requirements. Regular inspection and maintenance of these devices are essential to ensure their proper function and reliability.
