Shaft Collar

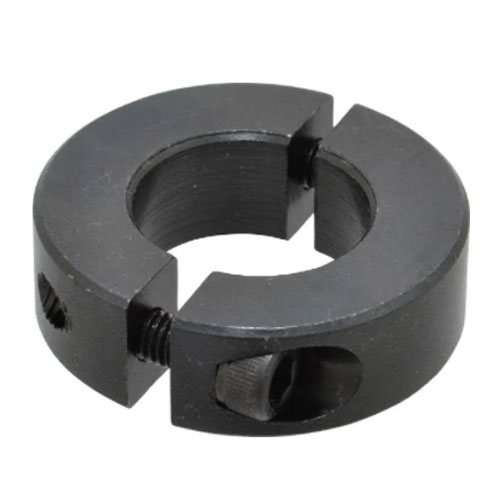

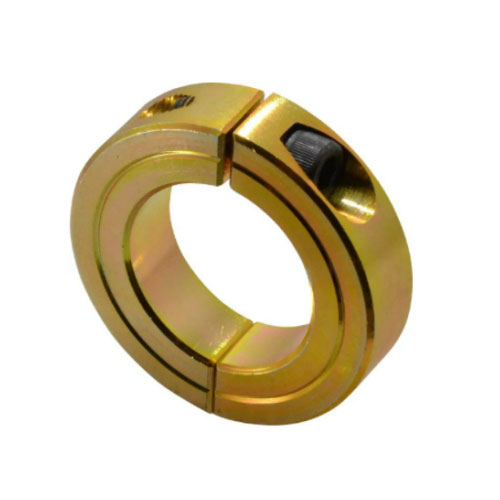

A shaft collar, also known as a collar clamp or shaft clamp, is a mechanical device used to secure components onto a shaft. It consists of a collar with a central hole that fits around the shaft and a fastening mechanism to hold it in place. Shaft collars serve various functions, such as providing support, limiting axial movement, and acting as a stop. Here are some key points about shaft collars:

1. Shaft Attachment: The primary purpose of a shaft collar is to attach components to a shaft. The collar is positioned at a desired location on the shaft, and when tightened, it creates a secure connection between the collar and the shaft.

2. Construction: Shaft collars are typically made of metal, such as steel or aluminum, or thermoplastic materials like nylon. Metal collars are sturdy and durable, while thermoplastic collars are lightweight and resistant to corrosion. They are available in various sizes to accommodate different shaft diameters.

3. Design: Shaft collars have a circular shape with a central hole that matches the diameter of the shaft. They may have one or more set screws, a clamping lever, or a threaded bore for fastening and tightening the collar onto the shaft. Some collars feature additional features like keyways for precise positioning or flanges for added stability.

4. Functionality: Shaft collars serve multiple functions, depending on the specific application. They can act as a support or bearing surface for other components, preventing them from sliding along the shaft. Collars can also limit axial movement by acting as a physical stop, preventing components from moving past a certain point on the shaft.

5. Positioning and Adjustment: Shaft collars can be easily positioned and adjusted along the length of a shaft. They can be loosened and repositioned as needed, allowing for flexibility in component placement or alignment.

6. Versatility: Shaft collars are used in various industries and applications. They are commonly employed in machinery, conveyor systems, robotics, automotive equipment, and power transmission systems. They provide a simple and effective means of securing components and facilitating smooth operation.

7. Customization: Some manufacturers offer custom shaft collars, allowing for specific modifications or features to meet unique requirements. This can include special sizes, materials, coatings, or additional machining operations based on the application's needs.

When using a shaft collar, it's important to ensure proper installation and tightening to maintain a secure connection. The collar should be positioned on a clean and properly sized shaft and tightened according to the manufacturer's instructions. Over-tightening should be avoided, as it can cause excessive pressure on the shaft and affect its performance. Regular inspection and maintenance of the shaft collar are also recommended to ensure its continued effectiveness.
